How to apply torsional load


How to apply torsion load?

How to use Point moment block

Applies to:

  • Point Moment

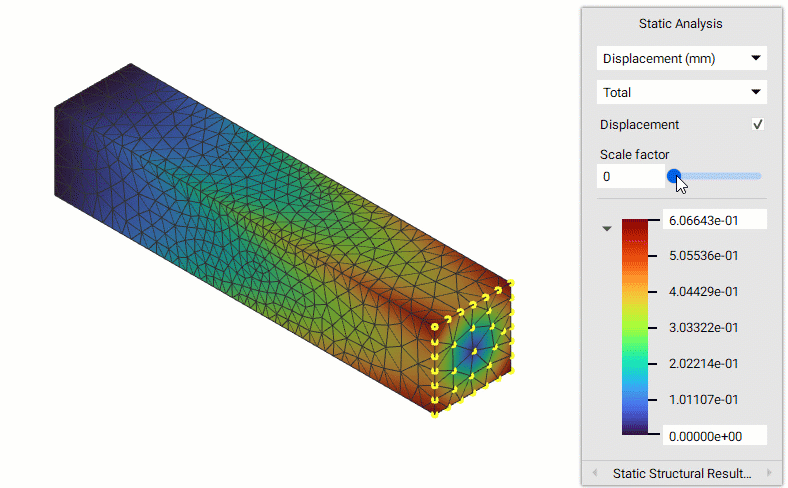

1. Prepare your model for Static Analysis. These articles have detailed instructions on How to create an FE Model and How to run a static analysis.

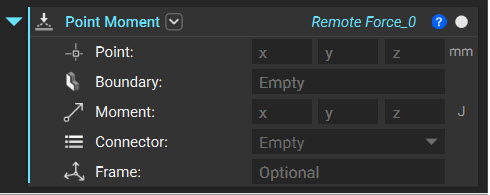

2.  Add a Point Moment block to the Boundary Condition List


Learn how to select the Boundary input following these articles How to select boundaries of an FE Mesh - FE Boundary by Body, How to select boundaries of an FE Mesh - FE Boundary by Flood Fill, and How to use Boundary Conditions

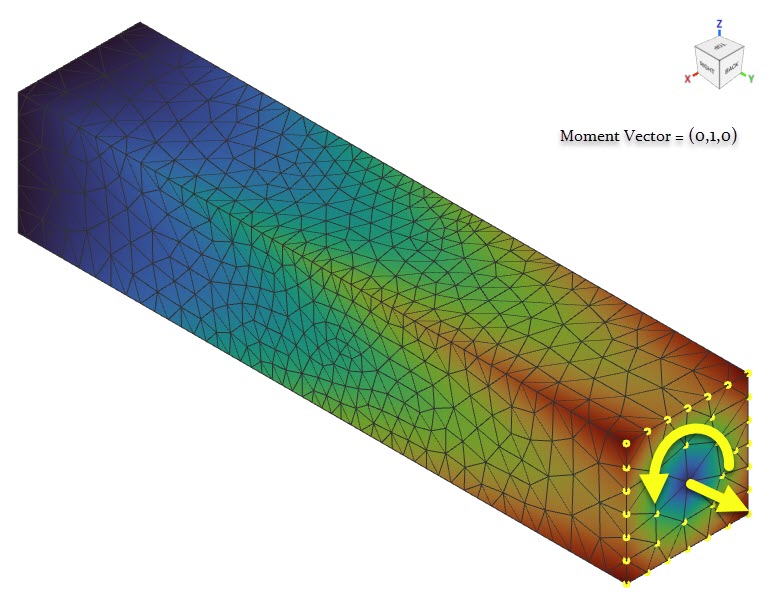

3. The Moment is applied at the center of the selected nodes and in the direction defined in the Moment input. The moment follows the right-hand thumb rule when applied.



And that’s it! You’ve successfully applied torsional load.

Are you still having issues? Contact the support team, and we’ll be happy to help!

Download the Example file:

More on this topic:


 analysis fea static point how-to load moment point moment torsion torsional
