Question:

What types of graph lattices are available when I use a graph lattice unit cell?

Answer:

Name

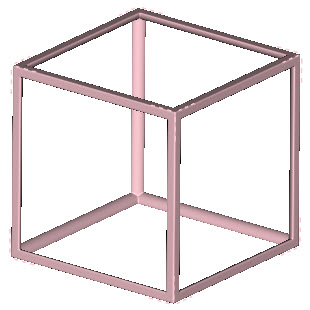

Simple cubic Simple Cubic Unit Cell

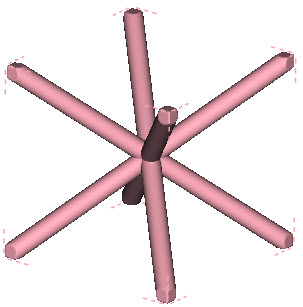

Body-centered cubic Body-Centered Cubic unit cell

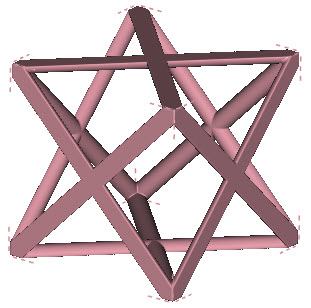

Face centered cubic Face Centered Cubic unit cell

Column Column unit cell

Columns Columns unit cell

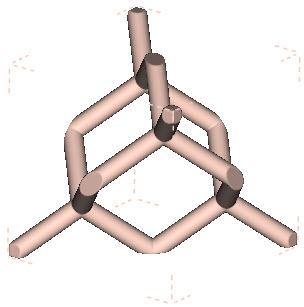

Diamond Diamond unit cell

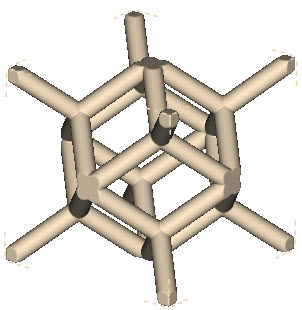

Fluorite Fluorite unit cell

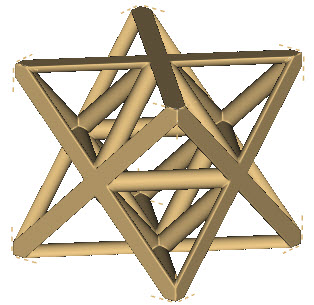

Octet Octet unit cell

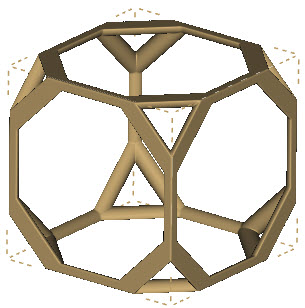

Truncated cube Truncated Cube unit cell

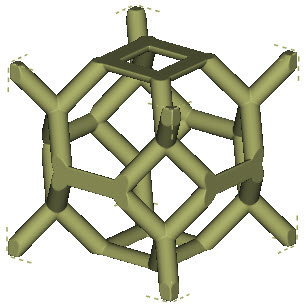

Truncated Octahedron Truncated Octahedron unit cell

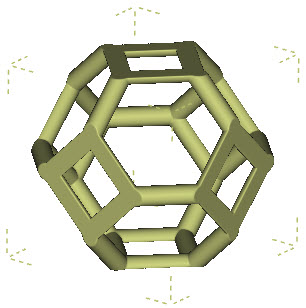

Kelvin cell Kelvin cell unit cell

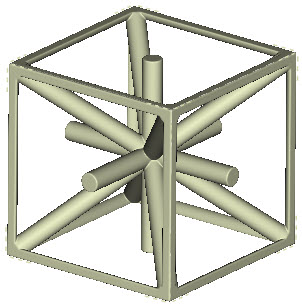

Isotruss Isotruss unit cell

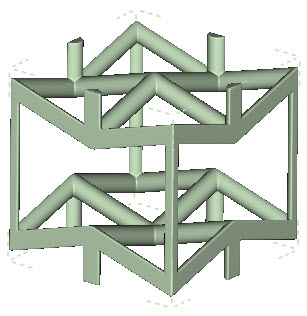

Re-entrant Re-Entrant unit cell

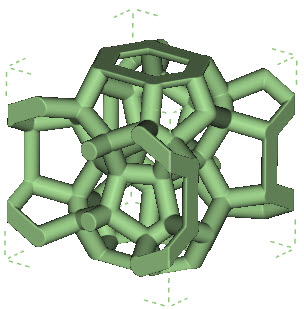

Weaire-Phelan Weaire-Phelan unit cell

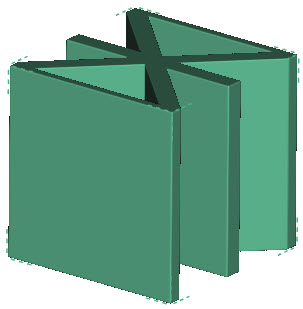

Triangular Honeycomb Triangular Honeycomb unit cell

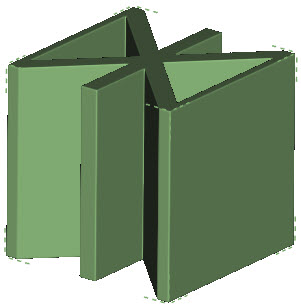

Triangular Honeycomb Rotated Triangular Honeycomb Rotated unit cell

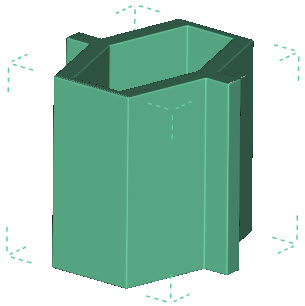

Hexagonal Honeycomb Hexagonal Honeycomb unit cell

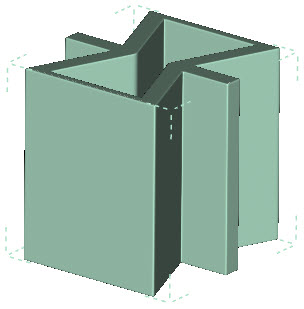

Re-entrant  Honeycomb Re-Entrant Honeycomb unit cell

Square Honeycomb Square Honeycomb unit cell

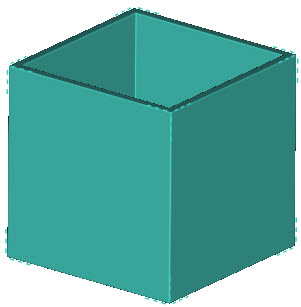

Square Honeycomb Rotated Square Honeycomb Rotated unit cell

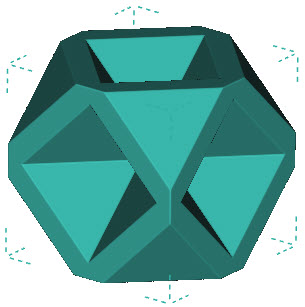

Face-Centered Cubic Foam Face-Centered Cubic Foam unit cell

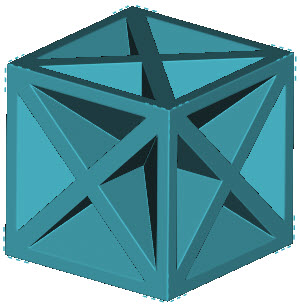

Body-Centered Cubic Foam Body Centered Cubic Foam unit cell

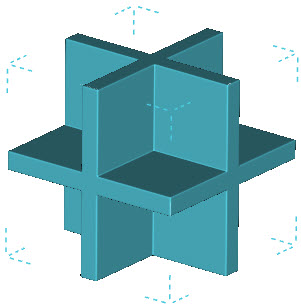

Simple Cubic Foam Simple Cubic Foam unit cell

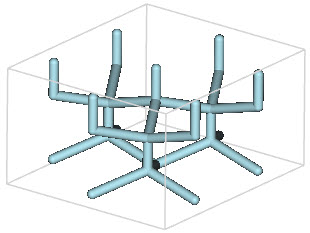

Hex Prism Diamond Hex Prism Diamond unit cell

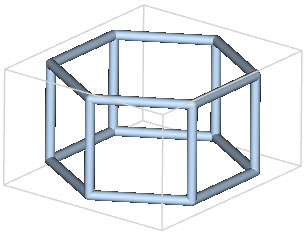

Hex Prism Edge Hex Prism Edge unit cell

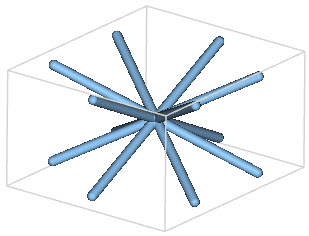

Hex Prism Vertex Centroid Hex Prism Vertex Centroid unit cell

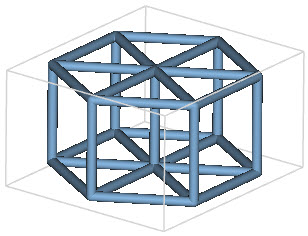

Hex Prism Central Axis Edge Hex Prism Central Axis Edge unit cell

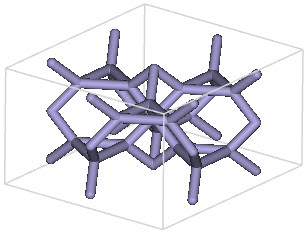

Hex Prism Laves Phases Hex Prism Laves Phases unit cell

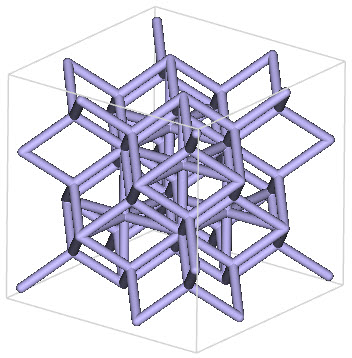

Tet Oct Vertex Centroid Tet Oct Vertex Centroid unit cell

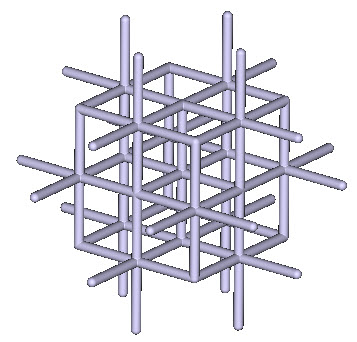

Oct Vertex Centroid Oct Vertex Centroid unit cell
