Question:
How do I create a ribbed lattice perpendicular to the surface?
Applies to:
- Lattices
- Implicit modeling
Answer:

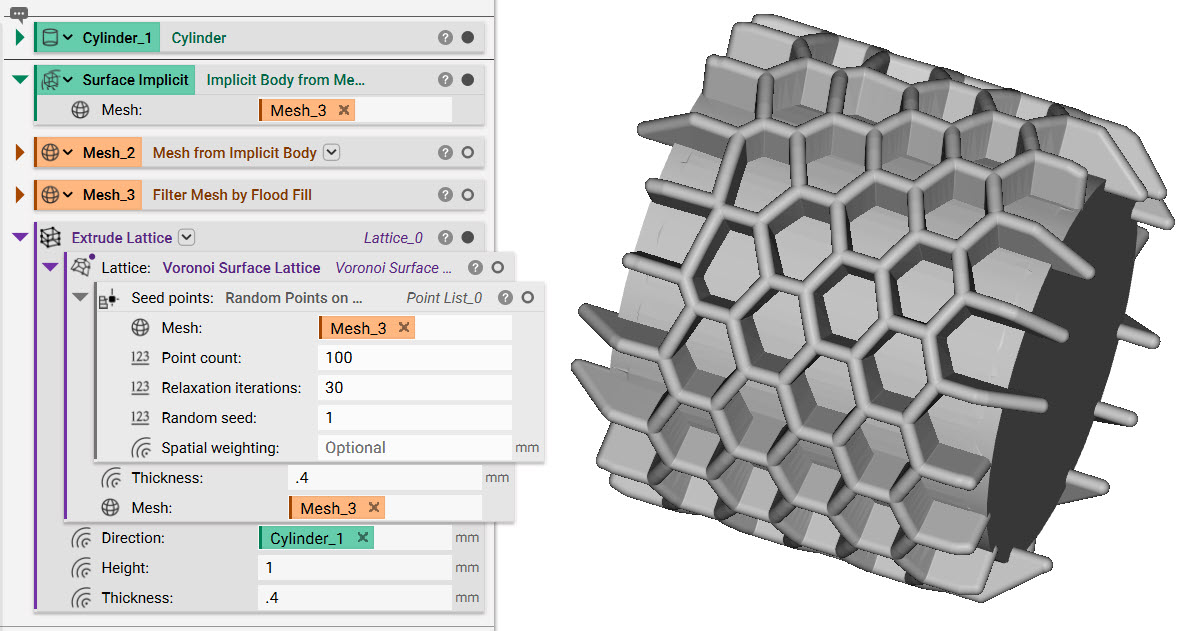

To create a ribbed lattice that is perpendicular to the surface, use the Implicit Body that created that lattice, as the Direction. The Direction input allows for Field types. The Implicit body is a field where the positive direction is outwards from the body.
