nTop has developed a comprehensive integration framework with Stanford University's Aerospace Vehicle Environment (SUAVE) to accelerate conceptual aircraft design and optimization workflows. This integration bridges the gap between nTop's field-based modeling capabilities and SUAVE's aerospace analysis tools.
What is SUAVE?
SUAVE is a modular, conceptual-level aircraft optimization platform that handles aerodynamics, propulsion, mission profiles, and multi-disciplinary optimization (MDO). The platform takes structured input data to define vehicles, operating conditions, and mission parameters for comprehensive aerospace analysis.
Integration Overview

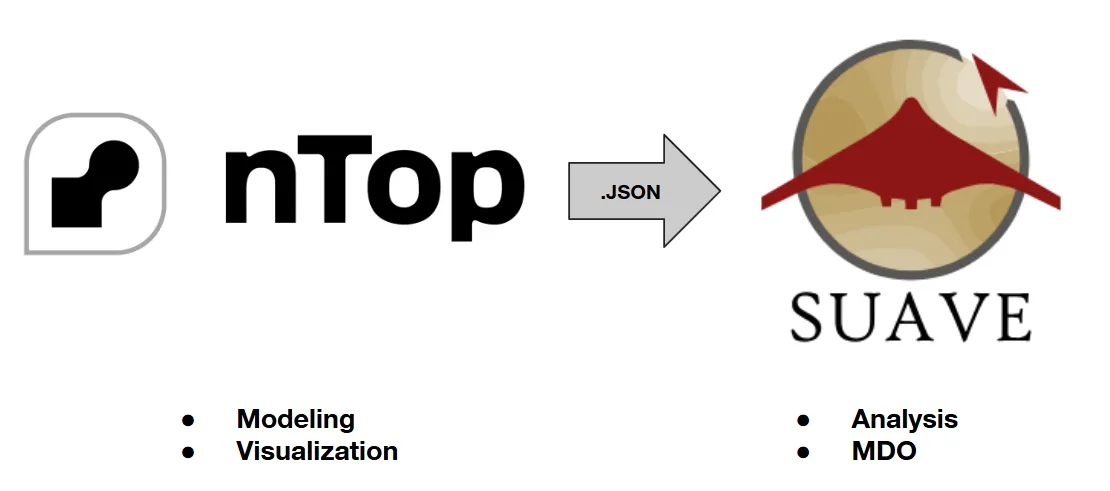

Our SUAVE integration consists of nTop custom blocks and Python scripts that standardize aircraft configuration data and enable seamless export to SUAVE's analysis environment. This workflow transforms the traditional aircraft design process by:
- Streamlining Data Transfer: Automated export of complex aircraft configurations from nTop to SUAVE-compatible formats
- Ensuring Design Consistency: Standardized parameter definitions across all aircraft components
- Accelerating Iteration Cycles: Direct integration eliminates manual data translation steps
- Enabling Optimization: Parametric nTop models feed directly into SUAVE's optimization algorithms
Capabilities
Aircraft Configuration Blocks
Our integration includes comprehensive blocks for defining complete aircraft systems:
Vehicle Design |
- Wing geometry with full aerodynamic parameterization (aspect ratio, taper, sweep, twist distribution)
- Fuselage configuration including passenger layout and structural parameters
- Landing gear systems with tire, strut, and ground operation specifications
- Turbofan engine system modeling including engine mounting and positioning, component-level configuration (fan, compressor, combustor, turbine, nozzles), performance parameters and operating conditions, and rotational dynamics analysis
- Mass properties breakdown for performance and structural analysis
Mission Planning |
- Airport environmental conditions and atmospheric parameters
- Flight segment definitions for climb, cruise, and descent phases
- Performance envelope limits and operational constraints
Export and Analysis Pipeline
Seamless data export capabilities that generate SUAVE-compatible files for:
- Complete vehicle configuration analysis
- Mission profile optimization
- Multi-disciplinary design studies
- Performance prediction and validation
Applications
This integration enables advanced aerospace design workflows including:
- Conceptual Design Studies: Rapid exploration of aircraft configurations and their performance implications
- Mission Optimization: Analysis of flight profiles and operational efficiency
- Parametric Studies: Systematic investigation of design parameter effects
- Multi-disciplinary Optimization: Integration of aerodynamics, structures, and propulsion considerations
Getting Started
To leverage this advanced aerospace design capability, the nTop Team can offer:
- The complete SUAVE integration library
- Custom workflow development for specific aircraft types
- Training and implementation support
Contact our team to collaborate on specific design requirements and customize implementation accordingly!
